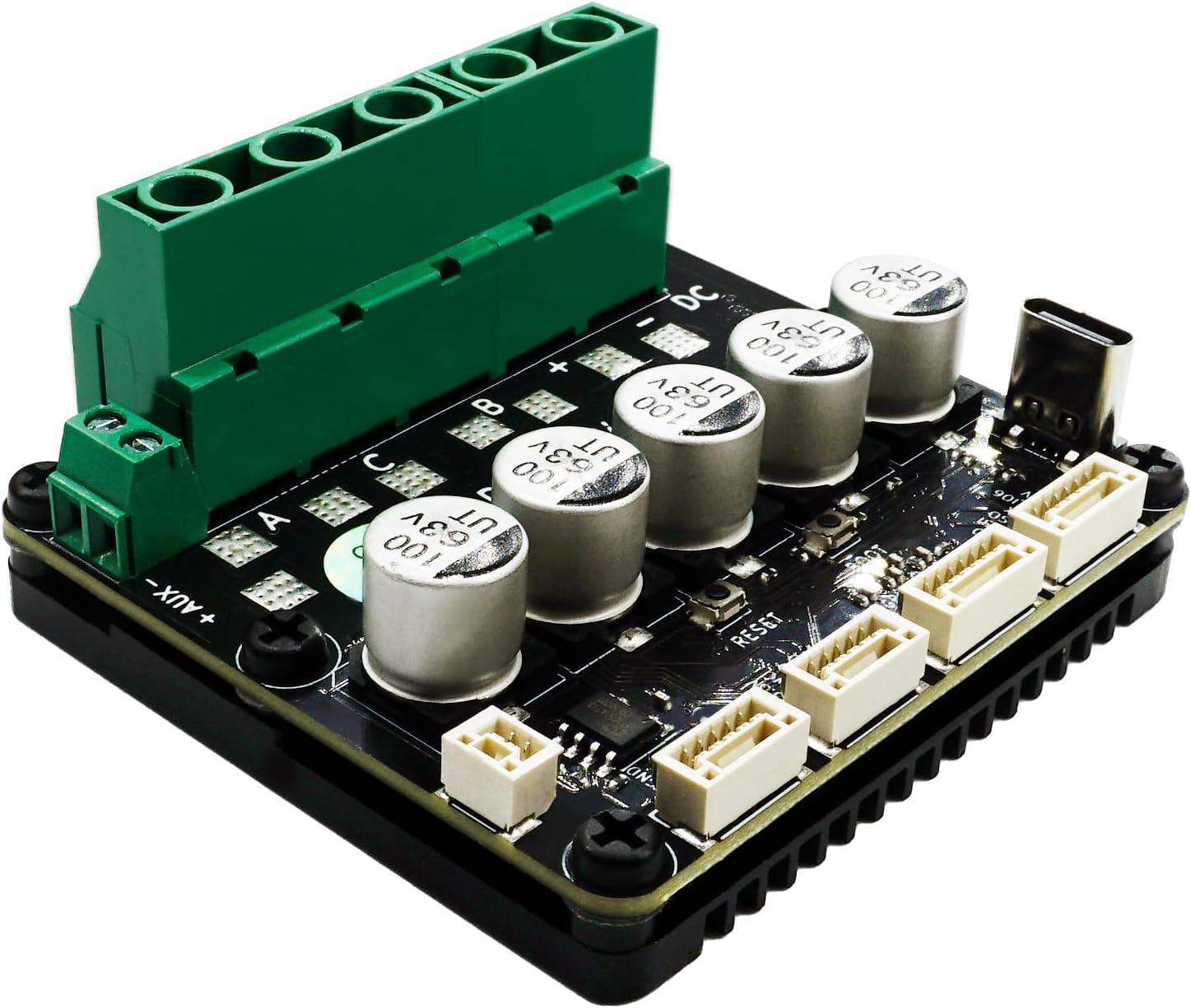

ODESC V4.2 Brushless Servo Motor Controller Driver Board, Software Configuration Compatible with Odrivetool, FOC, BLDC - 56V
4.6 (65 items)
Limited Time SaleUS$32.39 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 222906385 | Release Date | 2026/05/09 | List Price | US$21.60 | Model Number | 222906385 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

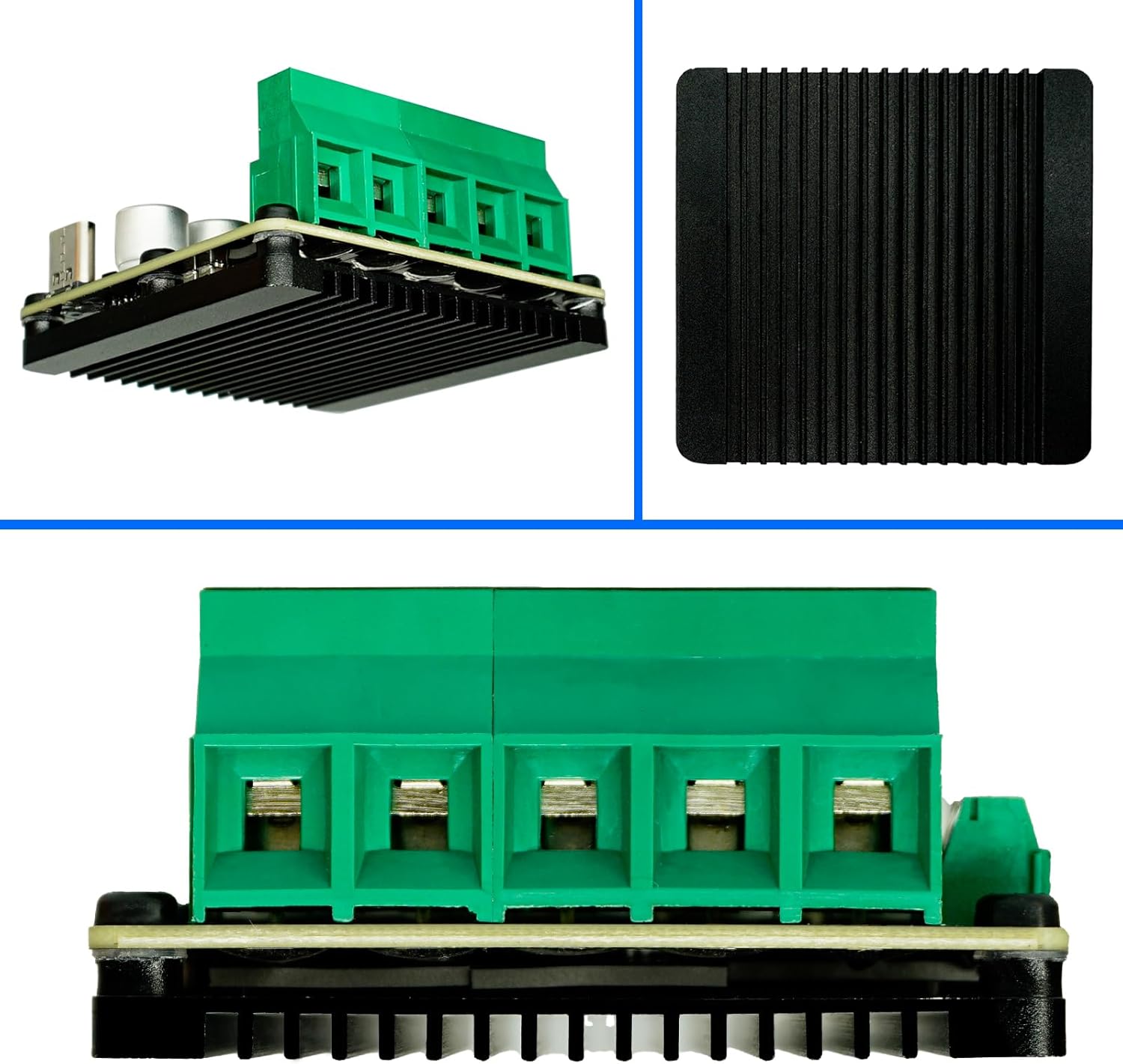

Specification - Hardware Version: Newest Version - Microprocessor: STM32F405RGT6 - Dimension: 63*58*30mm / 2.5*2.3*1.2 inches - Supported motor type: brushless motor - Continuous current: 70A (depending on heat dissipation) - Peak current: 120A/motor - Input Voltage: 8V-56V - Supported encoders: incremental encoder (AB, ABI), absolute value encoder (SPI), Hall sensor (HALL), AMT102, AMT103, TLB5012, AS5047P, etc. - Communication interface: USB-protocol open source (computer, for Raspberry Pi, ROS), Step/direction (PLC), UART (embedded device), PWM (RC remote control), GPIO, analog input, and CAN, ASCII, etc. - Motion mode: position mode, speed mode, torque mode for trajectory planning, etc. - Braking/braking mode: braking resistor, regenerative braking - PCB integrated high-current open skylight design, and CN custom-made aluminum metal heat sink, which greatly improves operation stability. - Programmable: Yes - Power Cable: 12AWG Application - Fit CNC milling machines, 3D printers, robots, AGV cars, pan tilt slides, etc. Packing List - 1 x driver board - 1 x Type-C Data Cable - 1 x 50W 2Ω Power Resistor - 2 x 12AWG Power Cable - 1 x GH1.25mm 2P Single End Connecting Wire - 1 x GH1.25mm 5P Single End Connecting Wire - 1 x GH1.25mm 6P Single End Connecting Wire - 1 x GH1.25mm 5P Double End with Same Direction - 1 x GH1.25mm 6P Double End with Same Direction
- ODESC V4.2 single driver board, STM32F405RGT6 Microprocessor
- Working voltage:DC 8V-56V, Continuous current: 70A, Peak current: 120A.
- Braking methods: Power resistors & battery recycling
- Drive motor: Brushless DC motor (BLDC)
- Control modes: speed mode, position mode, current mode, torque mode for trajectory planning.
- Note: Please watch the tutorial video if you don't know our ODESC esc clearly before using it. Any questions, just feel free to contact us.
| ASIN | B0FH9DXFG7 |
|---|---|
| Color | black,silver |
| Model | ODESCV4256V |
| Brand Name | SEQURE |
| Part Number | ODESCV4256V |
| Display Type | Digital Interface |
| Manufacturer | SEQURE |
| Material Type | Metal, Plastic |
| Included Components | 1 x Driver Board |
| Item Dimensions L x W x H | 2.48"L x 2.28"W x 1.18"H |
