GOWE NDT Equipment Portable Ultrasonic Flaw Detectors Digital UT Flaw Detection

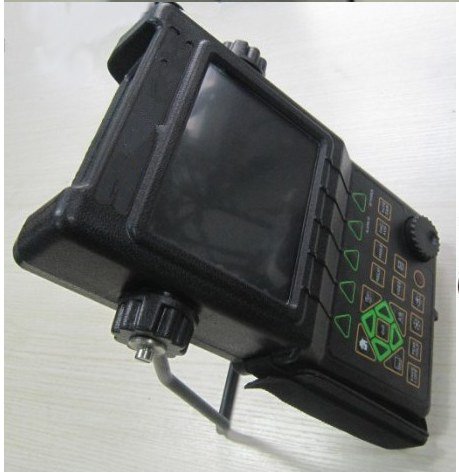

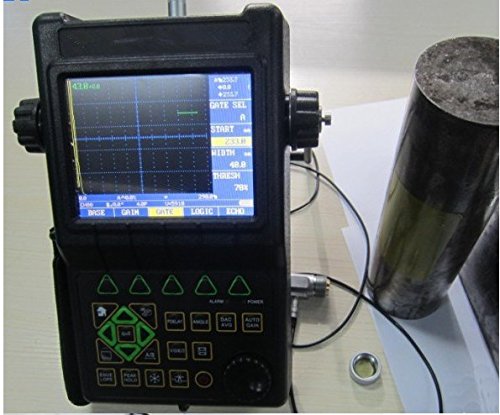

NDT Equipment Portable Ultrasonic Flaw Detectors Digital UT Flaw Detection; Gate Alarm; A Scan Freeze; Weld Figure & Curved-Surface Correction Feature; BNC / LEMO Connector; Echo Code; Store Function ; A portable detector w/ hi-resolution color TFT LCD display. Background & wave color can be selectable. Continue working over 8 hours w/ lithium-ion battery module.Can be widely used in locating voids,

• NDT Equipment Portable Ultrasonic Flaw Detectors Digital UT Flaw Detection; Gate Alarm; A Scan Freeze; Weld Figure & Curved-Surface Correction Feature; BNC / LEMO Connector; Echo Code; Store Function ; A portable detector w/ hi-resolution color TFT LCD display. Background & wave color can be selectable. Continue working over 8 hours w/ lithium-ion battery module.Can be widely used in locating voids,
• disbands,similar discontinuities in welds, forgings, billets, axles, shafts, tanks, pressure vessels, turbine and structural components.Features:Range :0~ 9999mm(steel); Pulser :Spike excitation with low, middle high choice; Pulse Repetition:10-1000 Hz.Adjustable pulse width; Damping: 200?, 300?, 400?, 500?, 600?selectable; Probe work mode: Single, dual element & through transmission; Receiver :Real-time sampling at 160MHz;
• Rectification : Positive & negative half wave, full wave, & RF; DB Step : 0dB, 0.1 dB, 2dB, 6dB; Functions :Peak Hold; Record the display continuously, save to memory; Localize defect position,distance, depth & plane projection distance; Calculate defect size; Evaluate defect; DAC & AVG; Measure & calculate crack depth; B-SCAN: Display cross-section of test block; Real time clock; Alarm w/ sound & light;
• USB2.0 high-speed communication port; Specifications:Range : 0 ~ 9999mm; ? 36dB( Dynamic Range); Bandwidth : 0.2 ~ 20 MHz ; Material Velocity : 300 ~ 15000m/s Linear error : ? 2.5%(Vertical); ? 0.1%( Horizontal); Resolution :> 40dB; Sensitivity Leavings : 65dB; Rejection : 0 to 80% Linear ; Noise level : ? 8%; Channels : 100; Power supply : DC 9V; lithium batteries work 8hrs more; Ambient temperature : -20 ~ 50¡ãC ; Relative Humidity : 20 ~ 95% RH ; Overall dimensions : 263 x 170 x 61mm
• Set includes:1 x Main Body; 1 x Straight Beam Transducer; 1 x Angle Beam Transducer; 1 x Interconnect cable for transducer; 1 x Machine-probe Cable(Lemo Or BNC); 1 x Rechargeable Li-ion battery; 1 x Power Supply/Charger unit; 1 x Operating Manual; 1 x Data pro software for MFD instrument; 1 x USB cable; 1 x Instrument Cas
