Akozon MESR-100 Capacitance Meter Auto Ranging in Circuit Tester Low Ohm Professional Capacitance Meter

Specifications: Model:MESR-100 Range:Accuracy (After Zero, tested with 1,10,100R resistor) Range：Refresh Time (Manual Mode)--*Auto mode take 0 to 2s more time depend on value 0.000 to 1.000R--1%+2Digit--0.4s 1.000 to 10.00R--1%+1Digit--0.4s 10.00 to 100.0R--2%+1Digit--0.4s Accuracy：Up to 1% (detail on table) Wide Measurement Range: >1uF (for 0.1uF the error will be larger on equation 1/(2*pi*F*C) @ 100Khz ) High Resolution:4 digit, or 0.001Ohm @ 1 Ohm range Measuring voltage:<40mV RMS (TESTING VOLTAGE) Clamping voltage:0.15V (open voltage) Battery:2X AA 1.5V battery(not included) External Power:5V micro USB Battery Life time:>80 Hours Operating current:0.02A Size:14.4*8.1*3.1cm/5.7*3.2*1.2in Weight:Approx.219g/7.7oz Package List 1 * Capacitance Meter (battery not included) 2 * Test Clips 1 * User Manual

• ❄【High Performance】 MESR-100 V2 automatic range capacitance and low ohmmeter for quick and easy inspection of general purpose capacitors or resistors. Suitable for TV, LCD, audio board repair and capacitor testing.Dual terminal for your convenience.
• ❄【Powerful test function】 capacitor tester has measurement range from 0.001 to 100.0R, support IN CIRCUIT test, can apply DC or peak-to-peak value of less than 15mV on a good capacitor, and measure value with true 100 KHz sine .

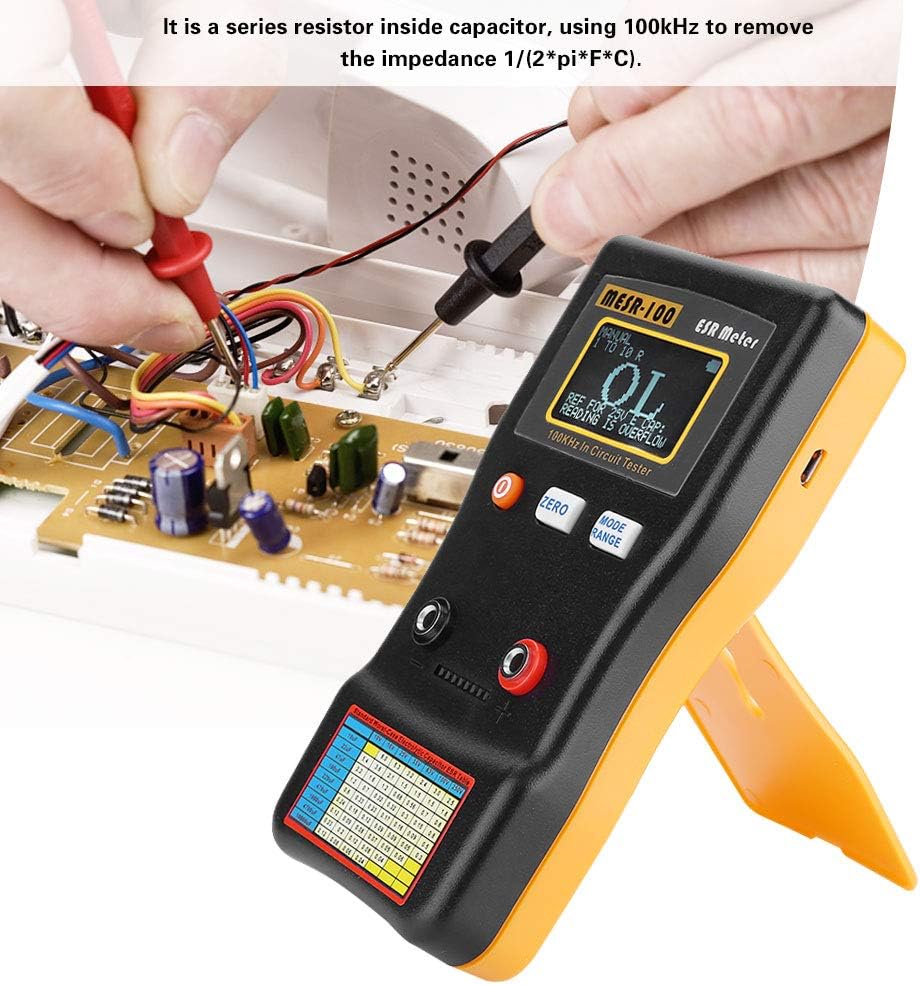

• ❄【 of Capacitor】 A series resistor inside the capacitor, using 100 kHz to remove the impedance 1 / (2 pi F C), the impedance becomes smaller, and then we can measure the true series value. Due to this low test voltage, it is not possible to turn on the semiconductor inside the test circuit.
• ❄【Backlight Design & Auto Sleep】 meter with LCD backlight design, the measurement data can be clearly displayed even in the dark, convenient for your use, support automatic sleep, no test for about 10 hours, it will automatically turn off to save power.
• ❄【Note】 The accuracy of this capacitance meter may be affected by the length of the test and the of the point. Please discharge the capacitor before testing. You can use a screwdriver to short-circuit, or use a resistor of about 10 ohms in series and short-circuit 5 to 10 seconds.
