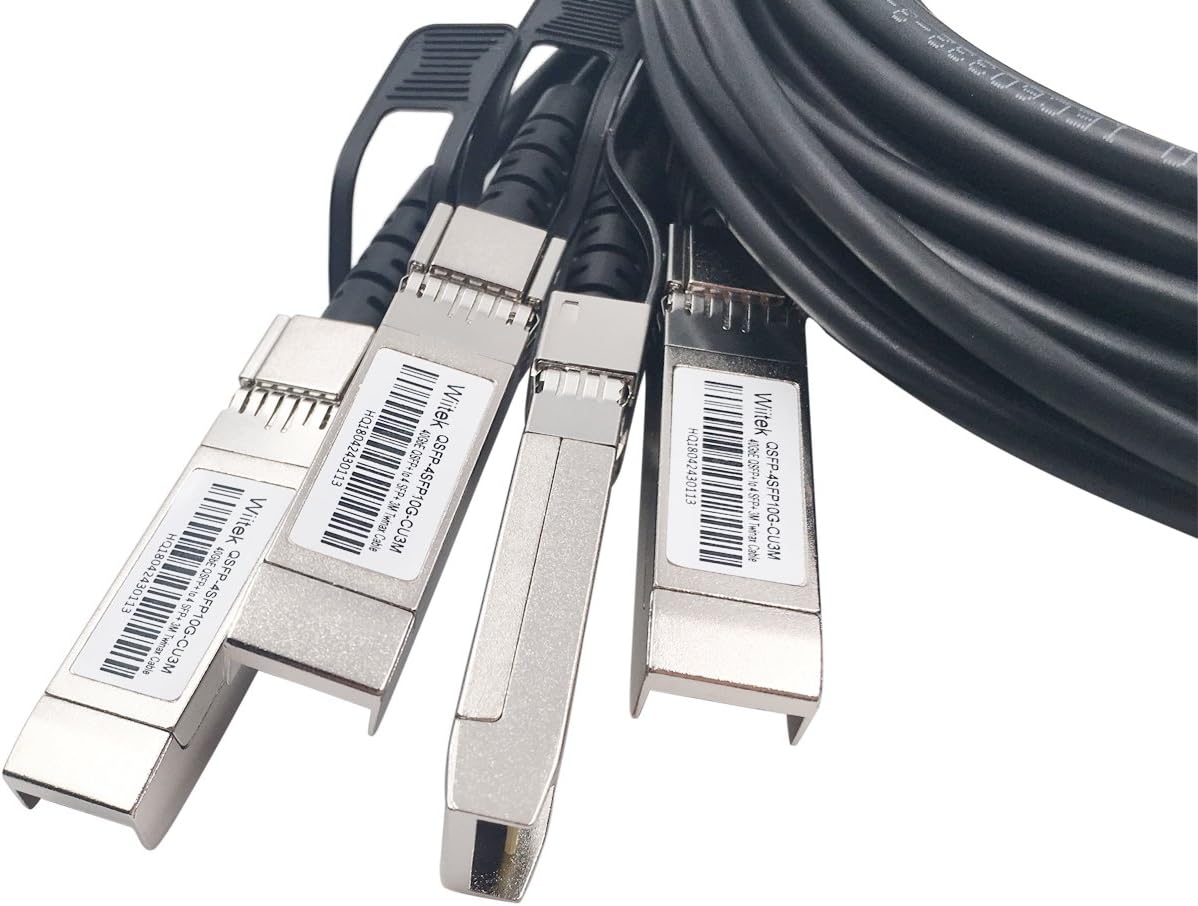

3 Meters QSFP+ to 4 SFP+ DAC Breakout Cable, QSFP-4SFP10G-CU3M, 40G QSFP+ Direct Attach Copper Cable, 30AWG Black, for Cisco, Ubiquiti, D-Link, Juniper, Huawei, Mellanox, Mikrotik, Extreme

Introduction The QSFP+ to 4x SFP+ Passive cable assemblies are high performance，cost effective for SFP+ and QSFP+ equipment interconnects . The Hybrid cables are compliant with SFF-8436 and SFF-8431 specifications. It is offer a low power consumption，short reach interconnect applications. The cable each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s. Features Hybrid cable conforms to the Small Form Factor SFF-8436 and SFF-8431 Support for multi-gigabit data rates :1.0 Gbps - 10.3125 Gbps (per channel) Maximum aggregate data rate: 41.25 Gbps (4 x 10.3125Gbit/s) Hybrid cable link length up to 5m (passive limiting) High-Density QSFP 38-PIN and 4x SFP 20-PIN Connector Power Supply :+3.3V Low power consumption: 0.02 W (typ.) Temperature Range: 0~ 70 °C Applications 40G QSFP+ to 4×10SFP+ 10G/40Gigabit Ethernet InfiniBand SDR, DDR, QDR Switches, Routers, and HBAs Data Centers Fiber Channel STANDARDS COMPLIANCE QSFP+ SFF-8436 QDR InfiniBand QSFP+ MSA RoHS Compliant SFP+ SFF-8431 SFP+ MSA RoHS Compatible Product Name：Wiitek for Cisco Compatible 40GbE QSFP+ to 4 SFP+ Twinax Cable, QSFP-4SFP10G-CU3M Direct Attach Copper Cable, Pull-to-Release Latch 30AWG 3M, Black Cisco P/N：QSFP-4SFP10G-CU3M Wire AWG：30AWG Cable Length：3m(10ft) Connector Type：QSFP+ to 4SFP+ Max Data Rate：40Gbps Protocols：40G InfiniBand 8x DDR, 4x QDR, 10G/40Gigabit Ethernet, Fibre Channel Color：Black

• 40GbE QSFP+ to 4 SFP+ Breakout Twinax Cable, QSFP-4SFP10G-CU3M Direct Attach Copper Cable, 30AWG Copper PVC Jacket 3m Cable, Zinc Alloy Shell;
• Used in 10G/40Gigabit Ethernet, InfiniBand SDR, DDR, QDR, Switches, Routers, and HBAs,Data Centers;
• Comaptible with Arista Networking, Ubiquiti, D-Link, Juniper, Huawei, Mellanox, Mikrotik and Supermicro;
• In Wiitek's Signal Integrity Lab, we 100% passed TDR & VNA tested. And each DAC Cable is individually tested on switches before delivery.
• Dust Cap Cover and Antistatic Bag Packaging, RoHs,CE,FCC Certificated, 3 Years Product Warranty and Lifelong Technical Support.
